Portable Restrooms | Echo ADA
ECHO ADA
ADA-Compliant Portable Restroom
STRONG. SMART. DURABLE.

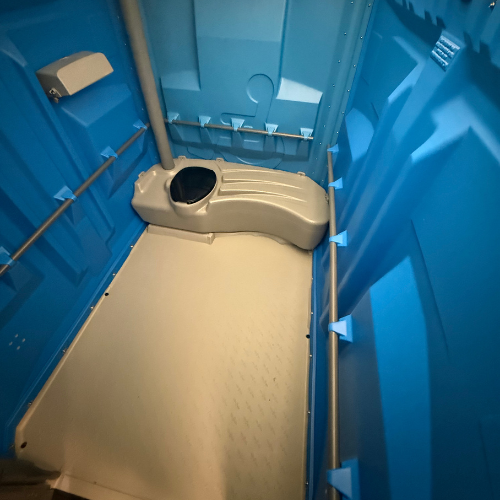

The Echo ADA portable restroom offers a spacious, fully ADA compliant restroom designed for wheelchair users.
For operators, The Echo ADA boasts a superior design with a 45 or 80-gallon sumped tank, 4 heavy-duty stainless steel hinges, an integrated floor drainage system for easy cleaning, side and rear forklift access molded into the floor, superior structural strength for longer life, a high-flow ventilation system, integrated assist grab rails, a reinforced domed roof with tiedown channels for secure transport, overlapping corner construction for extra durability, 2-strain relief door springs, and Echo series UV Color Protection Technology.
Features
ADA-compliant pneumatic door closer for ease of use
Four heavy-duty stainless steel hinges

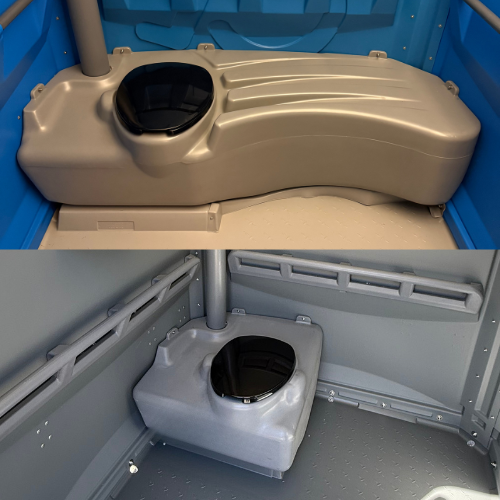

Available 45- or 80-gallon sumped bottom tank
Integrated floor drainage system for easy cleaning

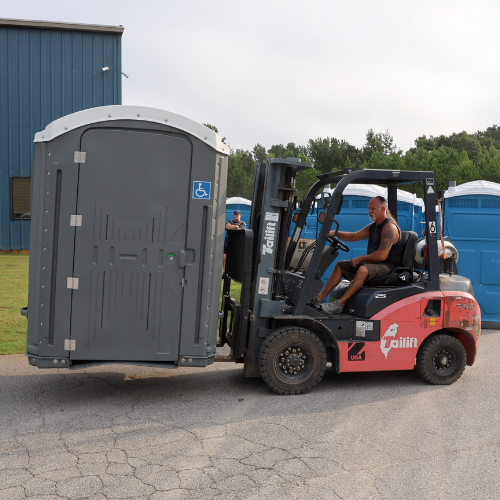

Side and rear forklift access openings molded into the floor
High-flow ventilation system
Integrated assist grab rails

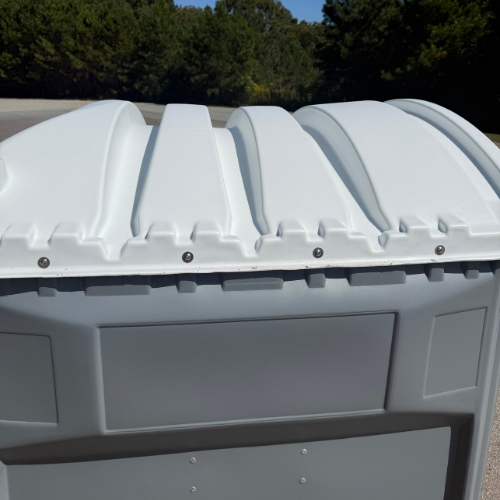

Structurally reinforced domed roof with tie-down channels for safe and secure transport
Overlapping Corner Construction
Strain Relief Door Springs
UV Color Protection Technology
Pneumatic Door Closer
| Specs | U.S. (lbs/in/gal) | Metric (kg/cm/L) |
|---|---|---|
| Weight | 290 lbs | 132 kg |
| Height | 86.3 in | 219.2 cm |
| Width | 66 in | 167.6 cm |
| Depth | 89.5 in | 227.3 cm |
| Doorway Width | 33.75 in | 85.7 cm |
| Doorway Height | 72.5 in | 184.2 cm |
| Tank Capacity | 45-80 gal | 170-303 L |
